BOE 37Inch Stretched LCD Display with 700cd/m² Brightness 1920*540 Resolution and 51pin Connector

BOE 37Inch Stretched LCD Display with 700cd/m² Brightness 1920*540 Resolution and 51pin Connector

ब्रांड नाम: BOE
मॉडल संख्या: DV370FBM-N10
एमओक्यू: 10 पीसी
कीमत: negotiable
भुगतान की शर्तें: टी/टी, डब्ल्यू, वेस्टर्न यूनियन, मनीग्राम
आपूर्ति की योग्यता: प्रति सप्ताह 3000pcs
विस्तृत जानकारी
उत्पत्ति के प्लेस:
चीन
प्रमाणन:
Rohs,CE,FCC
गुणवत्ता:
तटस्थ पैकेज या ग्राहकों के अनुरोध के रूप में
पैकेट:
8-98003130-0 8-98288946-1 8980031300 8982889461
सामग्री:
ग्लास ओलेड
रंग:
16.7M रंग
नमूना:
WLED
शैली:
चौड़ी स्क्रीन उच्च रिज़ॉल्यूशन 1920*540पिक्सेल
चमक:
700 सीडी
योजक:
51 पिन
वैषम्य अनुपात:
1000:1
कामकाजी जीवन:
50 हजार घंटे
सिग्नल इंटरफ़ेस:
एलवीडीएस
इनपुट वोल्टेज:
12वी
पैकेजिंग विवरण:
औद्योगिक पैकिंग
उत्पाद का वर्णन

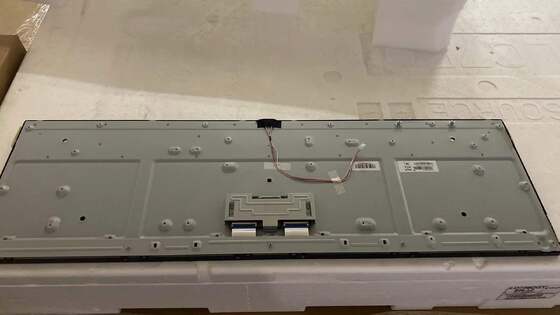

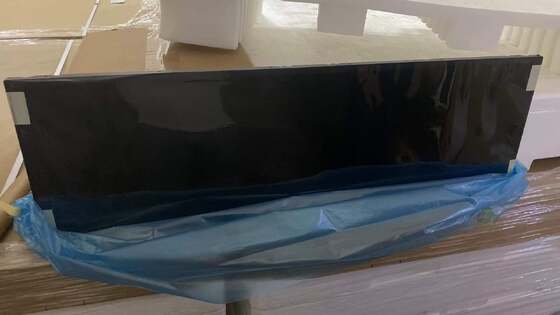

BOE 37-Inch Stretched LCD Display DV370FBM-N10
The DV370FBM-N10 is a 37-inch diagonal stretched bar LCD display panel from BOE Technology Group Co., Ltd., featuring 700 cd/m² outdoor high brightness, 1920*540 resolution, and 51-pin connector. This a-Si TFT-LCD panel includes an integral WLED backlight system and is designed for demanding outdoor and stretched display applications.
Key Features
  • 37-inch stretched bar display format (>3:1 aspect ratio)
  • 700 cd/m² high brightness for outdoor visibility
  • 1920*540 pixel resolution
  • WLED backlight with 50,000-hour lifespan
  • Wide viewing angles: 89/89/89/89 (CR≥10)
  • 1000:1 contrast ratio
  • ADS technology with normally black display mode
  • LVDS interface with 51-pin connector
  • Antiglare surface with hard coating (3H)
Technical Specifications
Manufacturer BOE
Model DV370FBM-N10
Display Size 37 inch (Native bar)
Resolution 1920(RGB)*540
Brightness 700 cd/m² (Typical)
Contrast Ratio 1000:1 (Typical)
Viewing Angle 89/89/89/89 (Typical, CR≥10)
Response Time 14 ms (Typical, G to G)
Display Colors 16.7M, 99% sRGB
Interface LVDS (2 ch, 8-bit), 51 pins Connector
Power Consumption 25.8W (Typical)
Input Voltage 12.0V (Typical)
Operating Temperature 0 ~ 50 °C
Storage Temperature -20 ~ 60 °C
Panel Weight 5.10 kg (Maximum)
Applications
  • Digital Signage
  • Outdoor High Brightness Displays
  • Stretched Bar LCD Applications
  • Commercial Display Systems
Note: Production status information is for reference only. For the latest production and specification details, please contact BOE or their authorized agents before integrating this model into your products.
